SMTP

Mageplaza SMTP will assist you to resolve email sending issues. By available popular email server providers, our extension absolutely would like to help you in sending email with a huge amount of quantity, faster along with high secure authentication. Hence, Mageplaza SMTP will also provide you a log diary which archive all the detail sent emails, makes it easier to keep track and checking problems. Be ready to say goodbye to Spam box issue.

Download & Install​

You can download from the following resouces:

Install via composer (recommend)​

Run the following command in Magento 2 root folder:

composer require mageplaza/module-smtp
php bin/magento setup:upgrade
php bin/magento setup:static-content:deploy

Here we go how to know detail in instructions and configuration in extension’s backend.

How to config​

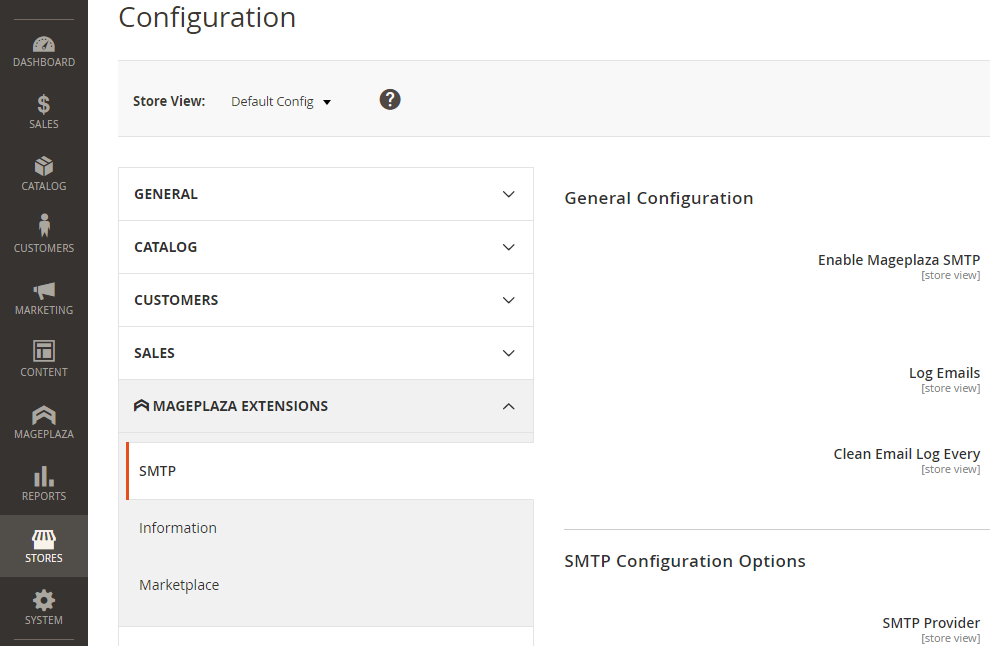

Login to the Magento admin, choose Stores > Settings > Configuration > Mageplaza > SMTP

Follow the guide below to complete SMTP configuration

  • Emails Log
  • General Configuration
  • SMTP Configuration Options
  • Developer

1. Email logs​

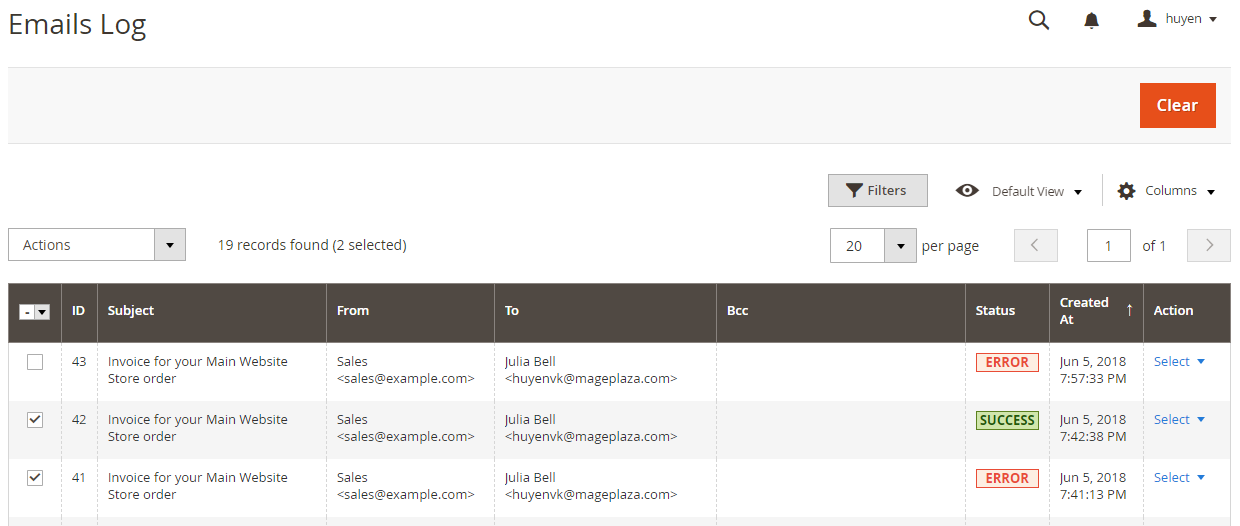

This can be accessed by the following Mageplaza > SMTP > Email Logs. From here you can look back all the sent email from the server to customers.

At here, you can view all information as ID, Subject, From, To, Bcc, Status, Created At as well as allow admins to take some actions for emails that are sent from the server to customers. At the same time, you also delete all emails by clicking on the Clear button.

Some actions can be taken:

  • View: To review the content of the email that is saved in the Emails Log. Admin can review by clicking Select > View in the Action column.

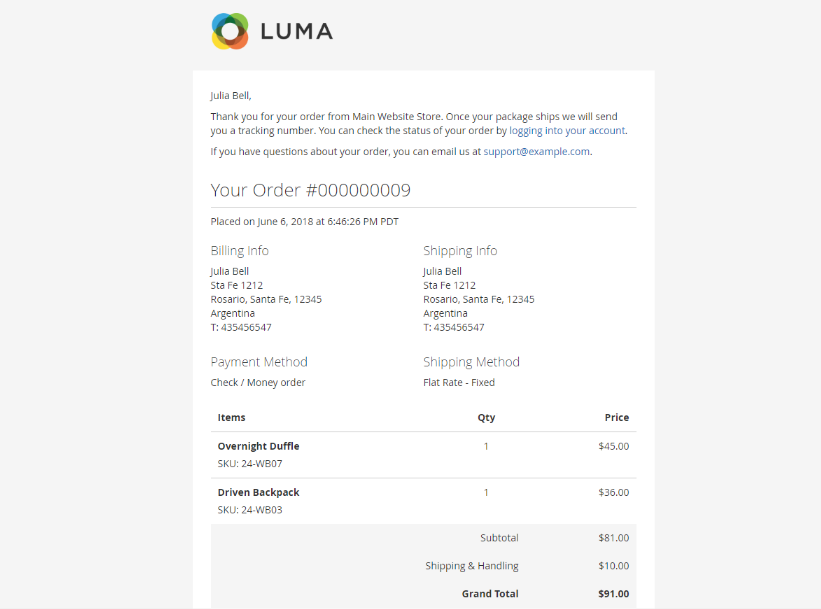

Below is the content of an email after you click on the View button

  • Resend:

    • In the Action column, choose Select > Resend. This means that the selected email will be resent once and that Email Resend is also logged, which enables admins to know if the Email Resend is sent successfully or failed.

    • The Resend feature can work well even if you disable the module. The Resend Email will apply the Provider of SMTP, however, it won’t be logged in the Emails Log.

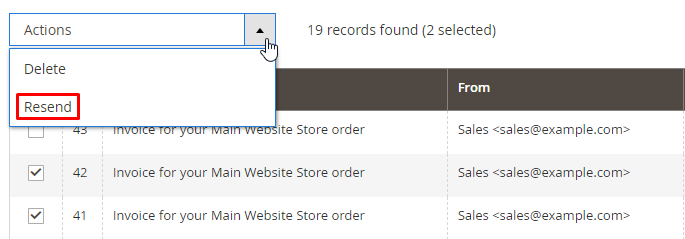

    • To resend lots of emails at once, you only need to tick, then choose Action at the upper left of the Grid, and select Resend.

  • Delete:

    • In the Action column, click Select > Delete: This means that the selected email will be removed from the grid.

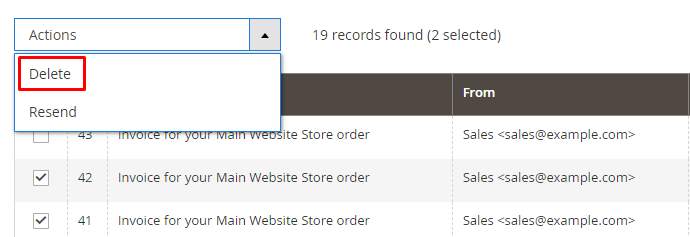

    • To Delete many emails at once, you only need to tick, then choose Action at the upper left of the Grid, and choose Delete.

2. Configuration​

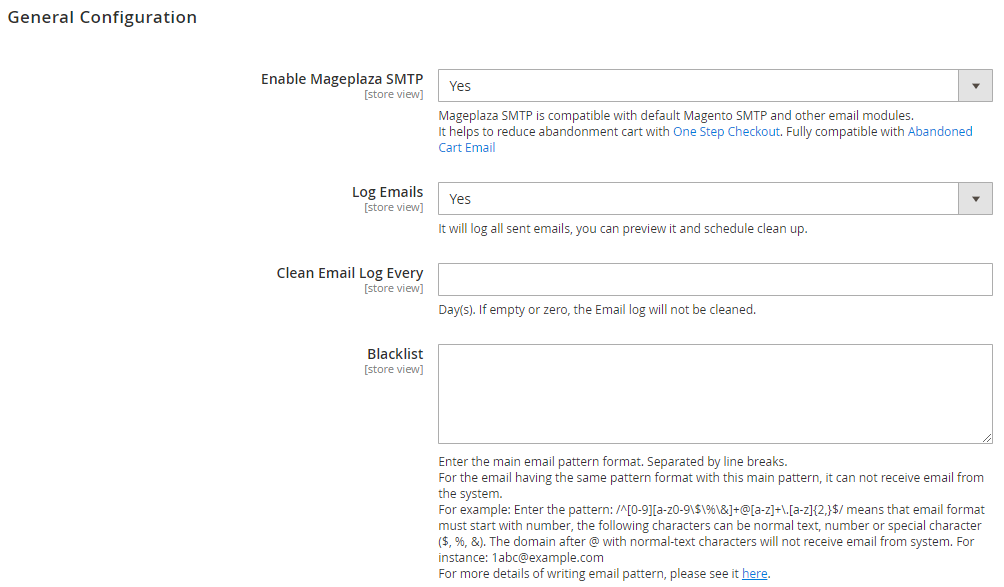

2.2.1 General Configuration​

Be sure you’re at Admin Panel, for general configuration Stores > Settings > Configuration > Mageplaza > SMTP. Choose General Configuration sections.

  • In the Enable Mageplaza SMTP field, select “Yes” to enable Mageplaza SMTP extension.

  • Log Email provides two modes:

    • Yes: Sent emails will be saved in the Emails Log, you can preview it and have it clean up to follow the fixed schedule.
    • No: Sent emails won’t be archived.

  • Clean Email Log Every: This field limits the storage time for the email you sent. After that limited number of days, Email will be auto-deleted. If you do not want to delete the emails, leave the field blank.

  • Blacklist: Enter the regular expression (regex) for email patern in this field, meaning that emails with the same pattern as the patern here will not receive any mail from the system.

    • Regex is written between two right slashes /../. Basic regex:
      • [0-9]: digits from 0 to 9
      • [a-z]: lowercase letters from a to z
      • [A-Z]: uppercase letters from A to Z
      • abc: letter. For example: /abc/ correspond to "abc" string in the defaut pattern string “abcdefgh”
      • 123: number. For example: /123/ correspond to "123" string in the defaut pattern string “abc123”
      • \d: any number from 0 to 9
      • \w: a letter
      • \s: white space (space, tab, new line, ...)
      • \D: non-numeric character
      • \W: non-letter characters
      • \S: character not white space
      • . : any character except the new line. For example: .{3} will correspond to any string with 3 characters
      • + : indecates the element appears >= 1 time
      • * : indicates that the element appears >= 0 times (may not appear)
      • ? : indicates the element appears 0 or 1 time
      • ^ : represents the first element of the string. For example: ^a corresponds to the letter "a" in the string "abc"
      • $ : matches the last character of the string. For example, c$ matches the character "c" in the string "abc"
      • ? : matches 0 or 1 times the character preceding it. For example: a? will be able to match "abc" or "bc" in the target string "abcdbc"
      • a|b : corresponds to a or b.
      • {x} : corresponds to x times. For example: {3} corresponds to 3 characters
      • {x,} : at least x times. For example, {2,} corresponds to at least 2 characters
      • {x,y} : from x to y times. For example, {2,6} corresponds to 2 to 6 characters
      • To use special characters, use the \ before that character. For example: /\.\+\*/ corresponds to. .+*

For example, the pattern of an email is: /^[0-9][a-z0-9\$\%\&]+@[a-z]+\.[a-z]{2,}$/

  • ^[0-9] : start with a number between 0 and 9
  • [a-z0-9\$\%\&] : the rest of the email may contain multiple digits, letters, characters $, %, &
  • @ : ending email address with the @ character
  • [a-z]+ : domain names include lowercase characters
  • \.[a-z]{2,}$ : End with top-level domain: begins with dot, followed by only lowercase characters, and requires at least 2 characters, $ sign indicates end of string.

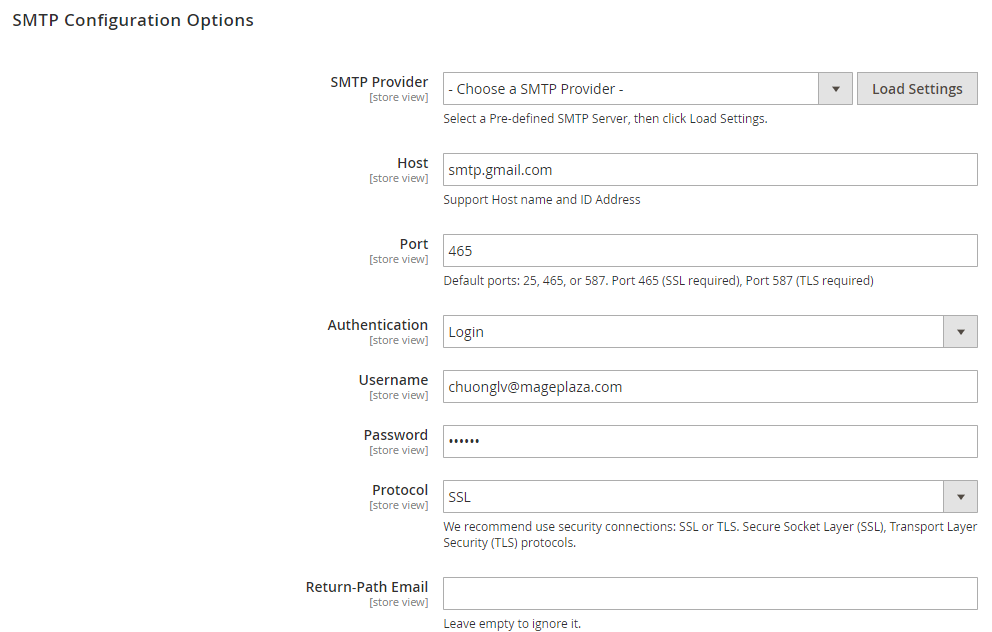

2.2.2 SMTP Configuration Options​

Still from the same structure with SMTP General Configuration, go to Stores > Settings > Configuration > Mageplaza > SMTP, then choose SMTP Configuration Options sections.

  • In the Host field: This is a field that allows you to fill in the Support Host name and ID address. If you click on Load Settings button, a popup about SMTP Providers will be displayed. Admins can choose SMTP Provider that they want and the system will auto-fill some fields as Host, Port, and Protocol.

  • In the Port field: This is a specific gate that emails will be sent through. You can also pass this step if you had chosen Load Settings from the first place. In general, there will be 3 kinds of Default Port:

    • Port 25: Emails sent by Protocol other than SSL, TLS will be sent via this portal
    • Port 465: Emails sent by Protocol SSL will be sent via this portal
    • Port 587: Emails sent by Protocol TLS will be sent via this portal

  • In the Protocol field: This is a place allowing you to choose the protocol to send the email. If you had click Autofill button, please ignore this field. You can choose one of the providing protocols below:

    • None: When you choose Protocol = None, this means that you accept all risks that can occur with your sent emails
    • SSL stands for Secure Socket Layer. This protocol ensures that all data exchanged between the web server and the browser is secure and stay safe.
    • TLS means Transport Layer Security. This protocol can secure data or messages and validate the integrity of messages through message authentication codes.

  • In the Authentication field: This is a field that enables you to choose the authentication method. There are 4 methods:

    • Login: Authentication by login to the account through Username and Password that will be filled in the next field. Most of providers will require this method.
    • Plain
    • CRAM-MD5
    • OAUTH2 (Office365): Only available when Host is smtp.office365.com. When you enter this host (or choose Office365 in Load Settings), this method is selected automatically and locked. See 2.2.3 Office365 (OAuth2) Configuration below.

  • In the Username field: This field allows you to fill in the Account name according to SMTP Provider format that you have selected.

  • In the Password field: This field enables you to fill the Password of Username that you have filled. After saving, Password will be encrypted into **

Note:

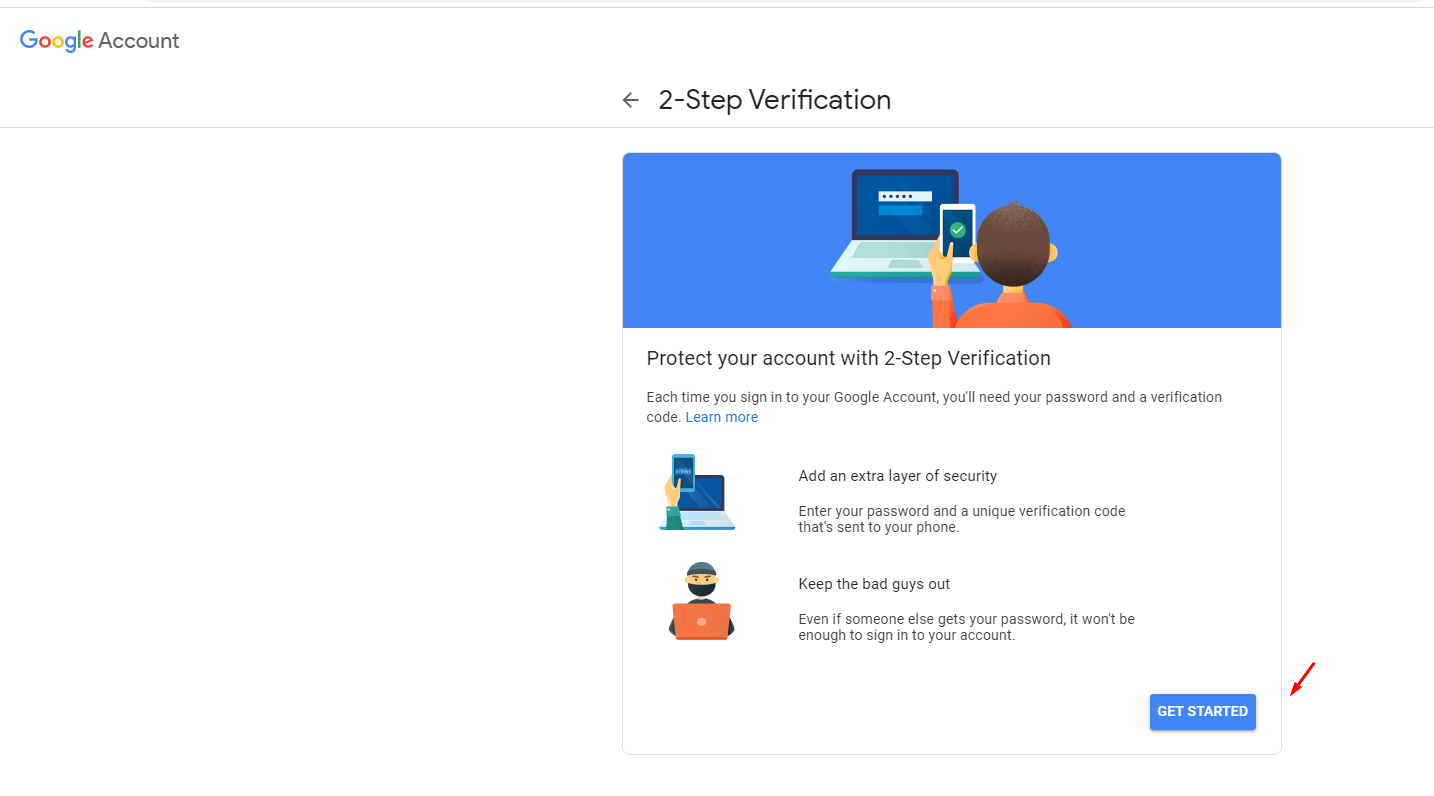

  • When using Email to fill into Username and Password, the email has to be varified by 2-Step Verification, to do this, click here.

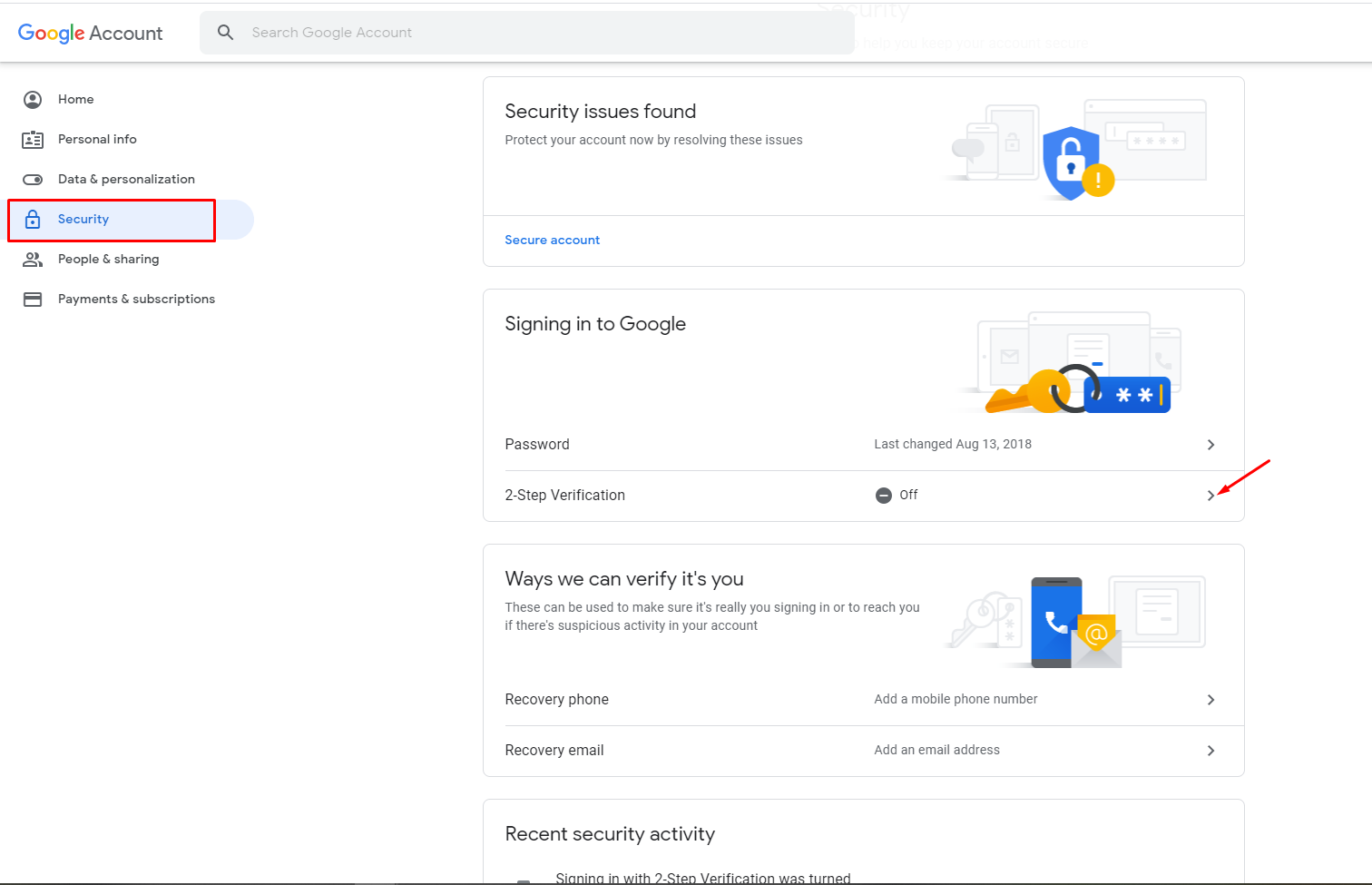

  • After clicking on the link, go to Security and choose 2-Step Varification

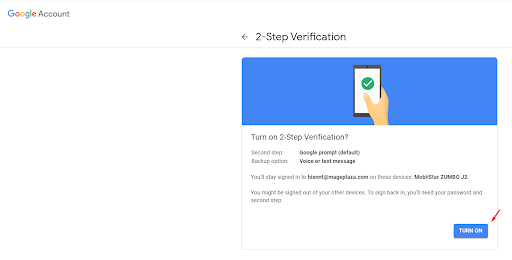

  • Click Turn on to complete this step

  • Next, you have to crease Passwords to sign-in Google accounts from app that do not support 2-Step Varification. So, Choose the apps and click on Generate

  • In the Return-path email field: Leave it empty if you want to ignore this.

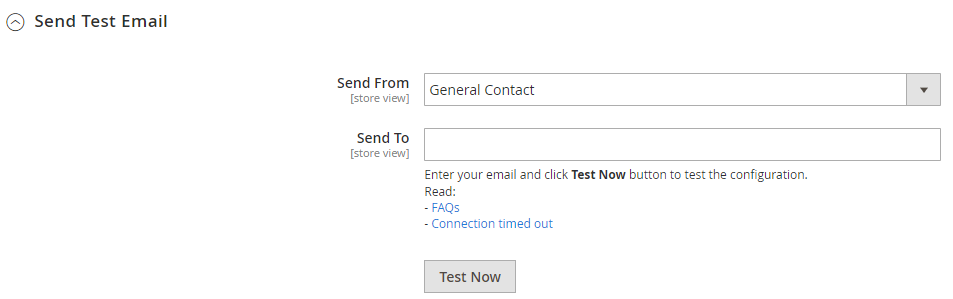

  • In the Send Test Email: This is a field for you to test the operation of the extension.
    • Send From: Admins can choose one of the five Email Sender of Magento.
    • Send To: Allow entering the email address that admins want to test the email.
    • To test the email, you need to fill the email address in the Send To field, then click Test Now button.

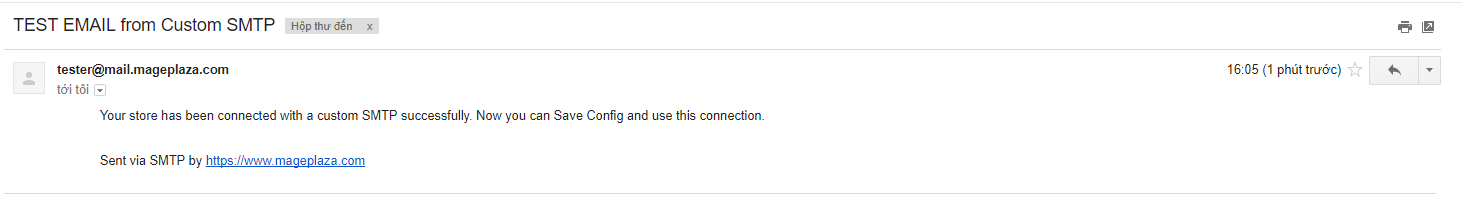

If the information you filled out is valid, a successful email message will be sent from Username to Email Test. That email has the following content:

2.2.3 Office365 (OAuth2) Configuration​

Microsoft is retiring username/password (basic auth) for Office365. With OAUTH2 (Office365), emails are sent through the Microsoft Graph API using an app registered in Microsoft Entra ID (Azure AD). Username and Password are hidden, and three fields are shown instead:

  • Tenant ID (Directory ID): The Directory (tenant) ID of your Microsoft Entra tenant.
  • Client ID (Application ID): The Application (client) ID of the app registration.
  • Client Secret: The secret Value of the app registration. It is encrypted after saving.

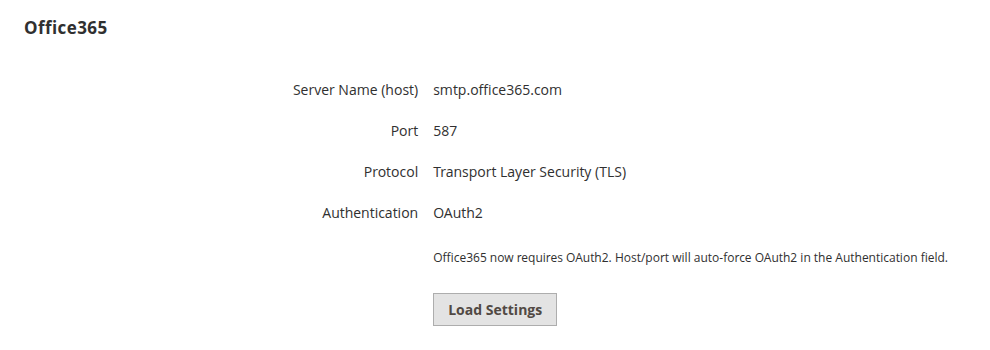

Tip: click Load Settings next to Host and choose Office365 to fill in Host, Port and Protocol at once.

How to get Tenant ID, Client ID and Client Secret

Roles needed in Microsoft Entra ID:

  • Register the app: at least Application Developer (source).
  • Grant admin consent for Mail.Send: Privileged Role Administrator or Global Administrator. Microsoft: "Cloud Application Administrator, AI Administrator, or Application Administrator, for granting consent for apps requesting any permission for any API, except Microsoft Graph app roles (application permissions)." (source)
  1. Sign in to the Microsoft Entra admin center, browse to Entra ID > App registrations, then click New registration. You can also open Microsoft Entra ID > App registrations from the Azure portal; it is the same app registration.
  2. Enter a name (e.g. Magento SMTP), under Supported account types choose Single tenant only - <your tenant> (older UI: Accounts in this organizational directory only), leave Redirect URI empty and click Register.
  3. On the app's Overview page, copy:
    • Directory (tenant) ID → paste into Tenant ID (Directory ID)
    • Application (client) ID → paste into Client ID (Application ID)
  4. Go to Certificates & secrets > Client secrets > New client secret, enter a description, choose an expiry and click Add. Copy the Value column right away (do not copy the Secret ID) → paste into Client Secret. Microsoft: "This secret value is never displayed again after you leave this page." The lifetime is limited to 24 months, and Microsoft recommends less than 12 months (source).
  5. Go to API permissions > Add a permission > Microsoft Graph > Application permissions, select Mail.Send and click Add permissions. Mail.Send is the least privileged application permission for the Graph sendMail API used by the extension (source).
  6. Click Grant admin consent for <your organization> and confirm. The status of Mail.Send must show Granted.

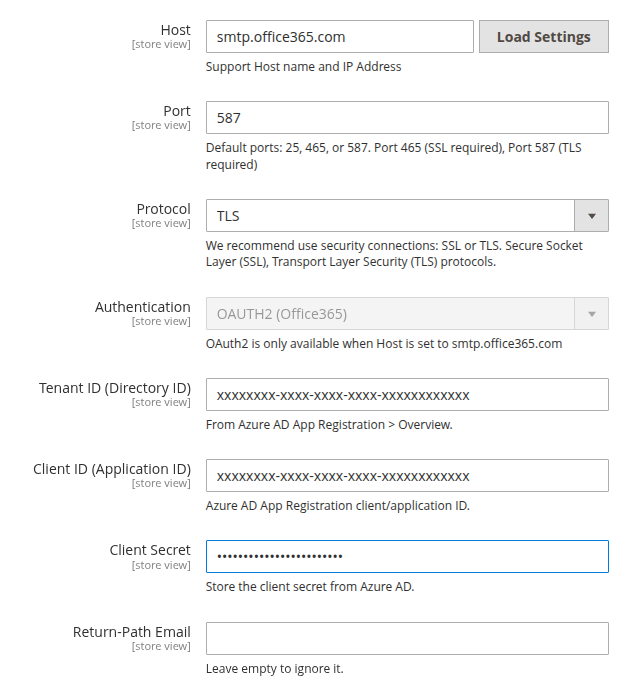

  7. In Magento, go to Stores > Configuration > Mageplaza Extensions > SMTP > SMTP Configuration Options, enter Host smtp.office365.com (Authentication switches to OAUTH2 (Office365) automatically), fill in Tenant ID, Client ID and Client Secret, click Save Config, then use Send Test Email to check.

Notes:

  • Emails are sent from the mailbox of the sender address configured in Magento (Stores > Configuration > General > Store Email Addresses). That address must be a mailbox (or an alias of a mailbox) in the same Microsoft 365 tenant. To send from an alias, enable SendFromAliasEnabled in Exchange Online.
  • Mail.Send (application) "allows the app to send mail as any user without a signed-in user". To limit the app to specific mailboxes, use RBAC for Applications in Exchange Online, which replaces Application Access Policies.
  • The client secret has an expiry date. Create a new secret before it expires, update Client Secret, then flush Magento cache.
  • Host, Port and Protocol are not used when sending with OAuth2.

2.2.4 Abandoned Carts Grid​

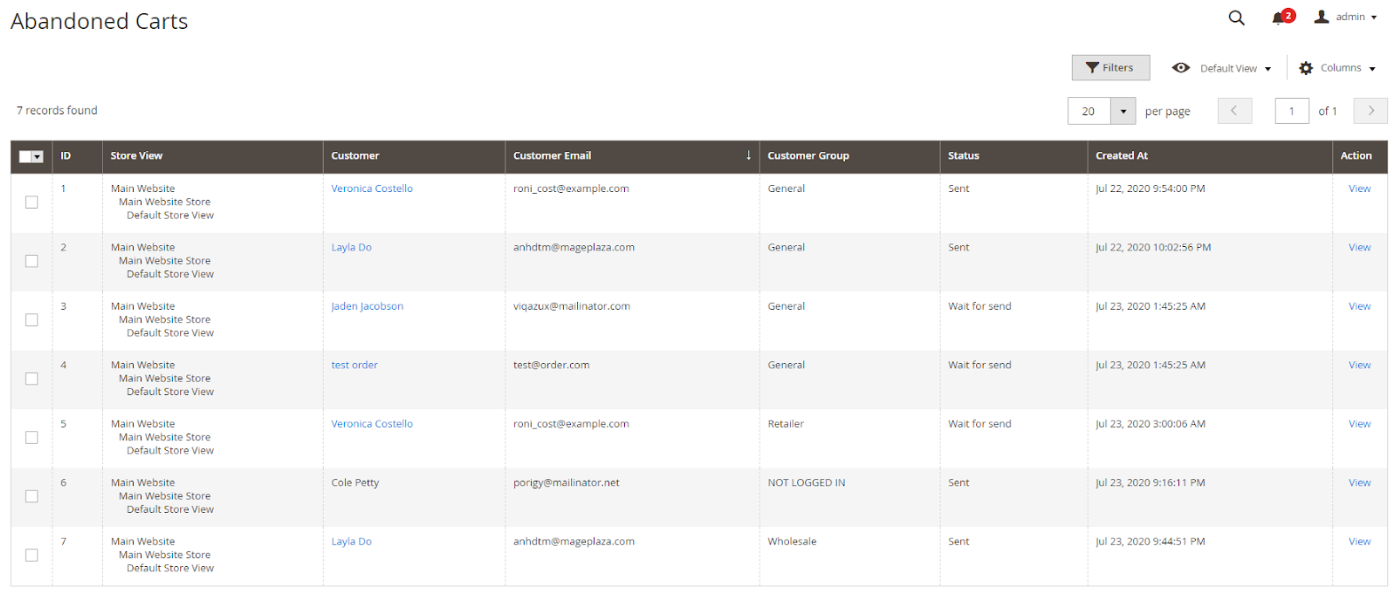

From the Admin Panel, go to Sales > Abandoned Carts:

  • This is where customer's abandoned cart information is shown.
  • From Abandoned Carts, admins can have information such as ID, Store View, Customer, Customer Email, Customer Group, Status, Created At, Action.
  • Action: The View section allows admins to view details of an abandoned cart.
  • In addition, admins can filter and change the store views as well as show or hide columns.

View Abandoned Cart:

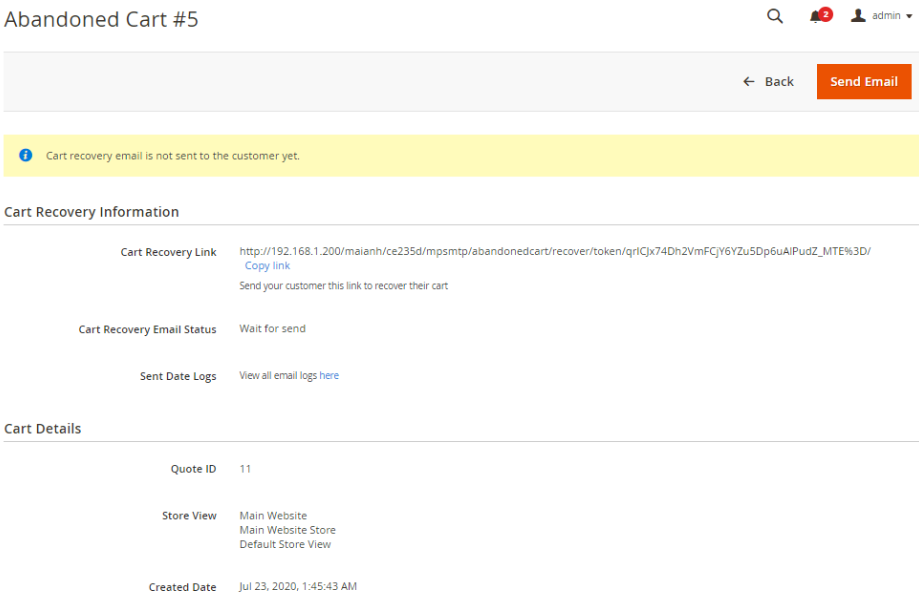

From the Admin Panel, go to Stores > SMTP > Abandoned Carts, then click View at Action:

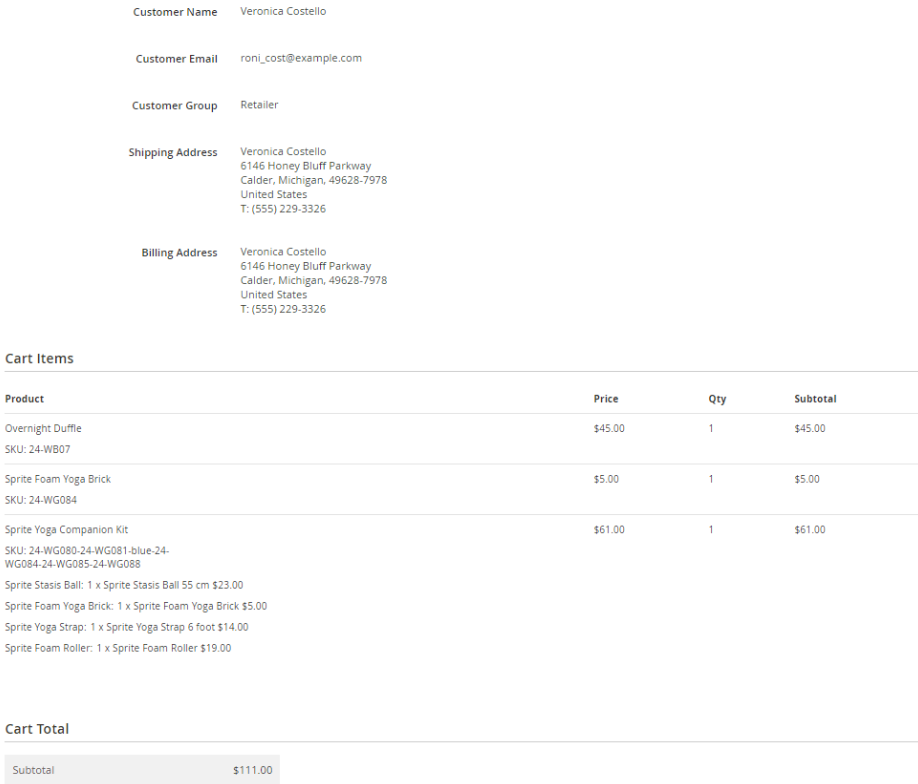

Detailed information of an abandoned cart will be displayed:

  • Cart Recovery:
    • Cart Recovery Link: Send your customer this link to recover their cart
    • Cart Recovery Status:
      • Wait for send: Have not sent emails to customers
      • Sent: Sent emails to customers
    • Sent Date Logs: Show date and time when emails are sent to the customers
  • Cart Details: Show details including Quote ID, Store View, Created Date, Customer Name, Customer Email, Customer Group, Shipping Address, Billing Address.
  • Cart Items: Show all products that customers abandoned.
  • Cart Total: Show the total of the cart.

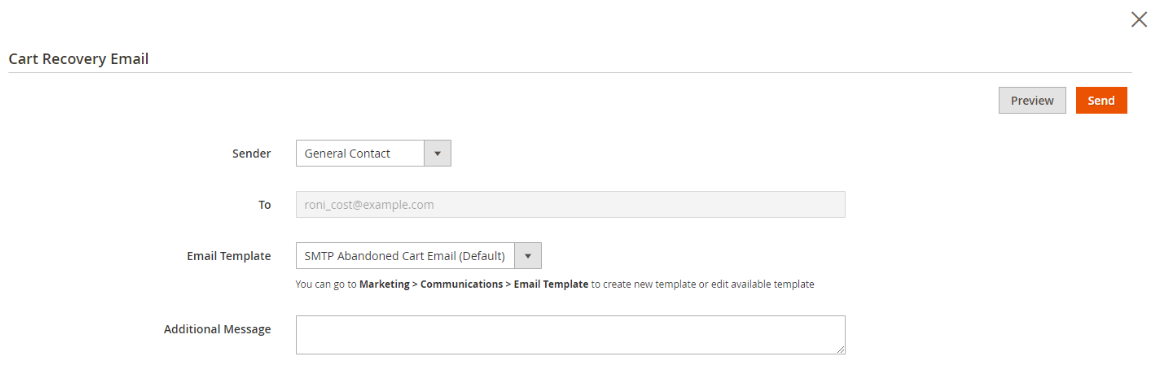

  • Send Email:

  • Sender: Select the email sender
  • To: Customers' emails
  • Email Template:
    • Set the email when customers have abandoned carts.
    • Go to Marketing > Email Templates, select Add New Templates to create new email templates.
    • Please find the guide to reate a new template here
  • Additional Message: Admins can add extra messages

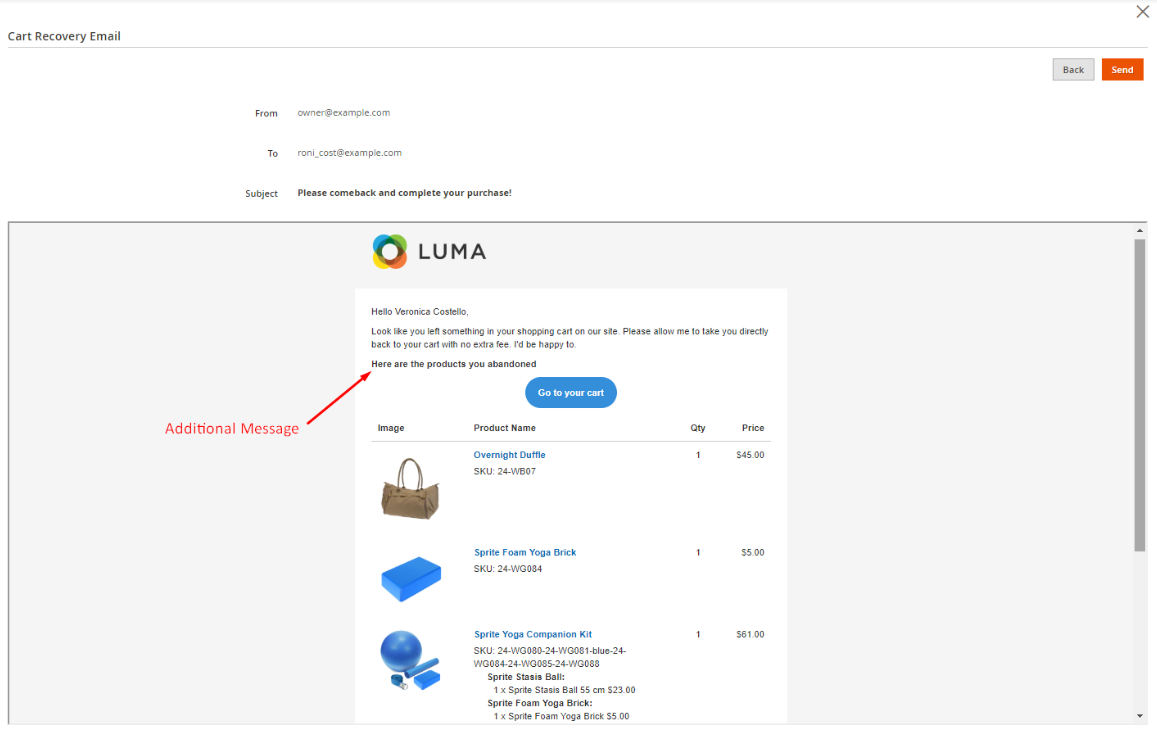

  • Preview: View the email that will be sent to customers.

2.2.5 Developer mode​

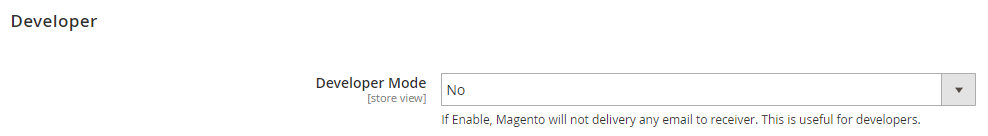

From the Admin Panel, go to Stores > Settings > Configuration > Mageplaza > SMTP, choose Developer sections.

  • Developer Mode:
    • Yes: Magento will not deliver any email to the receiver
    • No: Magento will deliver email to the receiver
